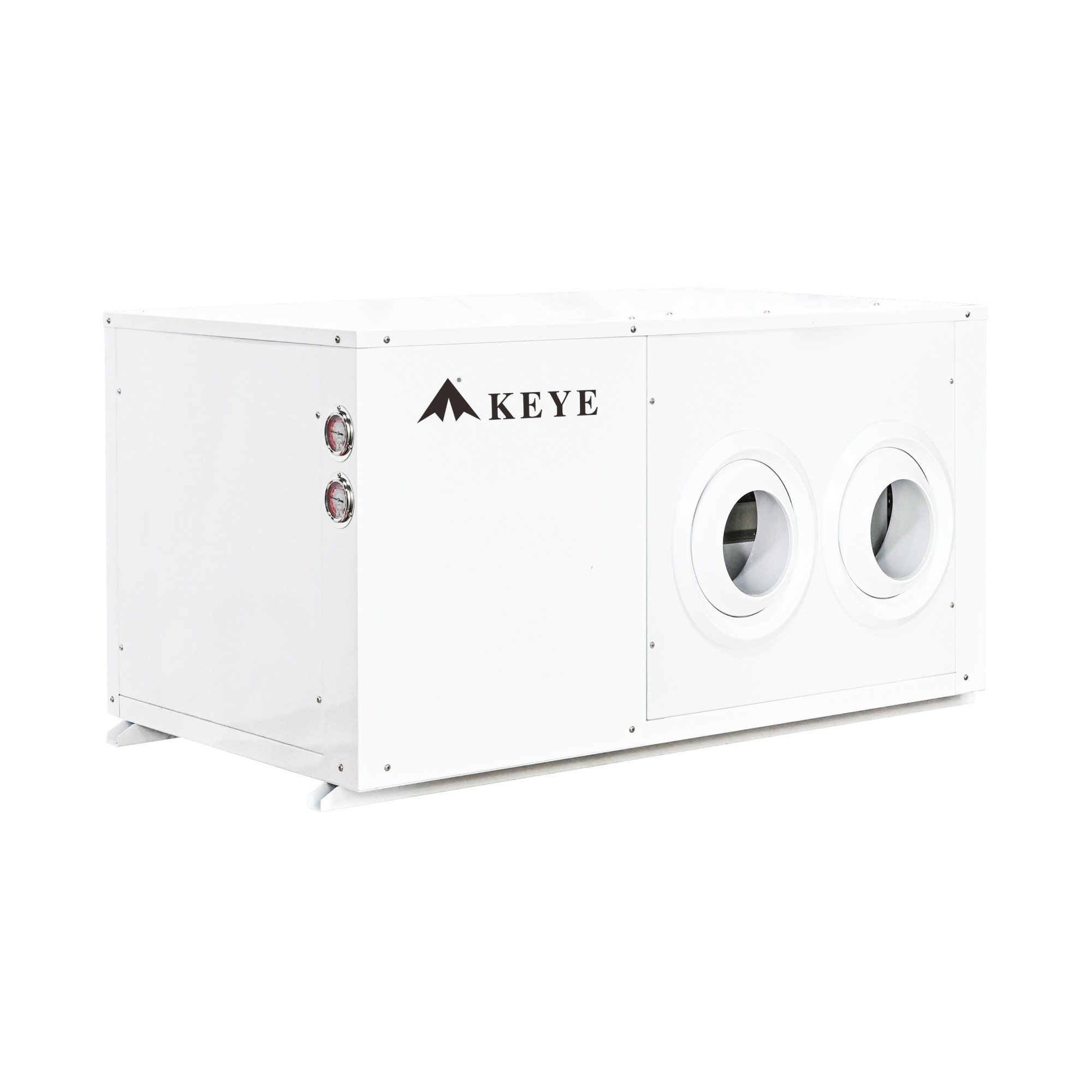

KYB-10PS Energy Saving Air Conditioner

Model:KYB-10PS

Rated voltage:380V~(Three phase)

Rated frequency:50Hz

Rated current:11A

Rated power:5.8kW

Maximum operating current: 12.5A

Maximum operating power: 7.2kW

Maximum air volume: 3580m³/h

Air supply distance: 20-25m

Applicable area: 120-150m²

Industrial cooling capacity:25kW

Refrigerant model: R410a

Cooling water flow: 4.2m³/h

Pump lift: 14m-16m

Noise: ≤74dB(A)

Diameter of tap water make-up pipe: Ф20 DN20

connecting pipe of internal and external machine: Ф32 DN 25

Internal/external unit weight: 165kg/116kg

Internal dimensions: 1360X800X720mm

External dimensions: 906X866X1460mm





Tel:+86-20-34869177

Description
Products Description

1、Energy saving, save 40% -50% compared to traditional air conditioners, and the compressor's cooling capacity is twice as efficient.

2、The air volume is big, the air supply is far, and the cooling temperature difference is over 12 ℃.

3、Industrial adaptation places: textile, clothing, printing and dyeing, leather making, sock industry, plastic processing, chemical, electronic, printing, packaging, electromechanical, mechanical, hardware, food and other places that require cooling.

4、Commercial adaptation places: office buildings, shopping malls, restaurants, schools, canteens, restaurants, internet cafes, gyms, hot pot restaurants, chess and card rooms, billiard halls and other places with temperature reduction requirements.

5、Suitable for various environments, installation methods: vertical, wall mounted, pipeline air supply.

6、The installation of the external unit is flexible, and it can be installed on the ground or on the roof in other places, with a lift range of 15 meters.

7、Duct production is convenient, lightweight, and easy to install.
